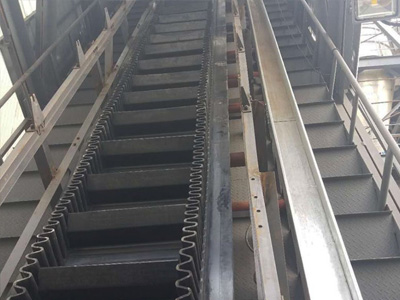

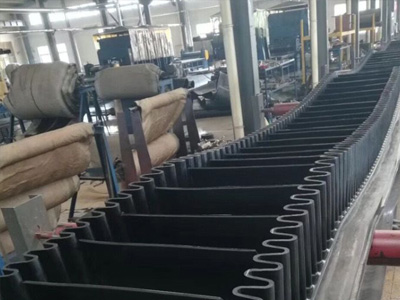

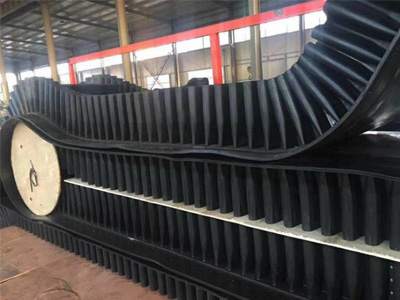

Sidewall conveyor belts

Product introduction

1. Corrugated sidewall conveyor belt with a High level of choosing upstream supplier: like a carcass, Monster Belting being our strategic partner supplying qualified fabric. All raw materials purchased are accompanied by a quality test certificate.

2. Our sidewall belt conveyor designs a strict QC system over the whole process of production: raw materials – semi-finished product – finished product. Every step of the semi-finished product shall be tested before the next step of processing. Unqualified pieces are now allowed for the next step of processing.

3. All finished products shall get tested, and only qualified products can leave the factory.

Product Parameter

Technical Data for Sidewall Conveyor Belt
Base Belt Width B(mm)	Sidewall Height H(mm)	Cleat Height H1(mm)	Bf(mm)	Br(mm)	R(mm)
300	40	35	25	180	35
	60	55	50	120	40
	80	75	50	120	40
400	60	55	50	180	60
	80	75
	100	90
500	80	75	50	250	75
	100	90
	120	110
650	100	90	50	350	100
	120	110	50	350	100
	160	140	75	300
800	120	110	50	460	120
	160	140	75	410
	200	180	75	410
1000	160	140	75	550	150
	200	180
	240	220
1200	160	140	75	690	180
	200	180
	240	220
	300	280	105	630
1400	200	180	75	830	210
	240	220	75	830
	300	280	105	770
	400	360	105	770
1600	200	180	75	970	240
	240	220	75	970
	300	280	105	910
	400	360	105	910
1800	240	220	75	1110	270
	300	280	105	1050
	400	360	105	1050
	500	460	125	1010

Mining Coal Industry Multy-ply Rubber EP conveyor belt
Total Tensile Strength	Fabric Type	Top Cover Thickness	Bottom Cover Thickness
( N/mm)		(mm)	(mm)
200-800	EP100	3.0/4.5/6.0	1.5/3.0
315-1250	EP150	3.0/4.5/6.0	1.5/3.0
400-1500	EP200	3.0/4.5/6.0	1.5/3.0
500-2000	EP250	3.0/4.5/6.0	1.5/3.0
500-2000	EP300	3.0/4.5/6.0	1.5/3.0
630-2500	EP400	3.0/4.5/6.0	1.5/3.0

Rubber Cover Property:
Item	Rubber grade(DIN22102)
Item	W	X	Y	Z
Tensile Strength (N/mm2)>=	18	25	20	15
Elongation at break(%) ≥	400	450	400	350
Abrasion (mm3)<=	90	120	150	250

Industries We Serve

We design and manufacture rubber conveyor belts. A major proportion of our customers has different requirements that we strive to meet by manufacturing customized belts.

Below are the industries we serve;

Aggregate and Mining

Cement

Steel/Metals

Energy/Thermal Power

Fertilizer/ Chemicals

Ports

Agriculture

Scrap/Recycling
