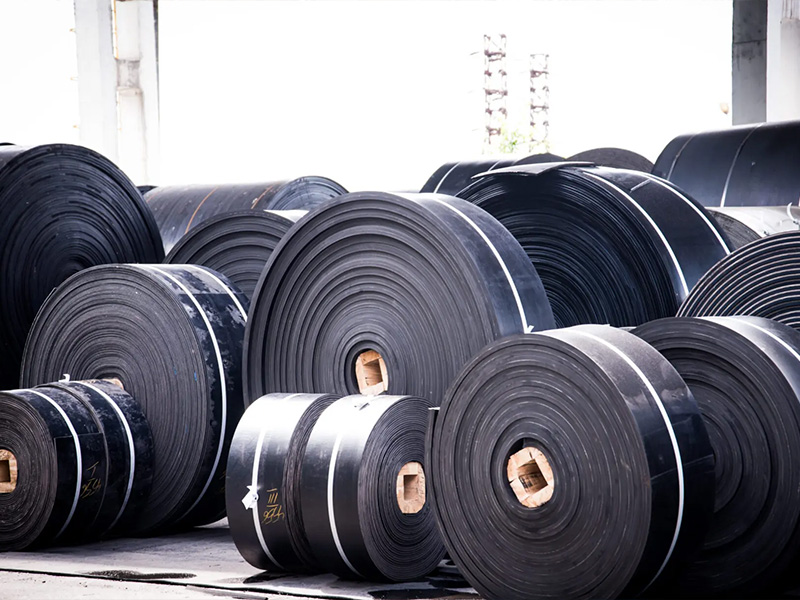

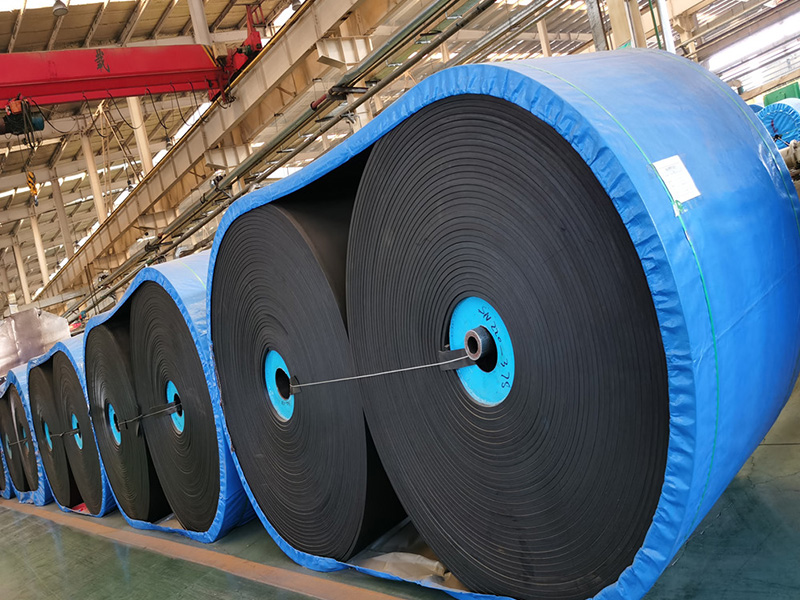

Fabric Conveyor Belts

Product introduction

Multiply fabric conveyor belt made of nylon fabric,SBR/NBR/EPDM rubber,high tensile strength, abrasion/oil/heat/wear resistant, pattern belts is available. General-purpose belt, Fire-resistant , Cold-resistant Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.

Specifications:

This is a polyester conveyor belt rubber that is made from structured weft and warp. We are nylon fabric conveyor belt manufacturer. This fabric conveyor belts is known for its high strength, resistance to wear and fatigue resistance. The fabric belt conveyor is used through various conditions for long-distance transportation and it is used in most industries including construction, ports, among others.

Applications:

Our multiply fabric conveyor belts are suitable for shifting loose, relative big density type big, middle, and small mineral locks, coal materials etc. Rubber conveyor belting has a relatively big impact on force and abrasion. Not Suitable for hot and oily materials conveyor .Especially suitable for working in severe environment, which requires relatively high belt dimension stability.

Specification and technical data of conveyor belt rubber

Fabric type	Fabric structure		Fabric specs	Ply thickness	Strength(N/mm)				Cover thickness		width	length
Fabric type	warp	weft	Fabric specs	mm/ply	2ply	3ply	4ply	5ply	upper	lower	mm	m
polyester	polester	polyamine	EP80	0.95	160	240	320	400	1.5-12	0-4.5	400-2500	50-500
			EP100	1	200	300	400	500
			EP150	1.1	300	450	600	750
			EP200	1.2	400	600	800	1000			500-2500
			EP250	1.35	500	7500	1000	1250
			EP300	1.45	600	900	1200	1500
			EP350	1.6	–	1050	1400	1750			800-2500
			EP400	1.75	–	–	1600	2000			1000-2500
			EP500	1.9	–	–	2000	2500
			EP630	2.1	–	–	2400	3000

Adhesion and elongation of rubber conveyor belting

The standard fabric type: ( It can be customized according to the customer’s requirements )

The belt whole Tensile Strength (KN/m)
	EP250/2	EP315/3
400	EP400/2	EP400/3	EP400/4
500	EP500/3	EP500/4	EP500/5
630	EP630/3	EP630/4	EP630/5
800	EP800/4	EP800/5	EP800/6
1000	EP1000/4	EP1000/5	EP1000/6
1250	EP1250/4	EP1250/5	EP1250/6
1600	EP1600/4	EP1600/5	EP1600/6
2000	EP2000/4	EP2000/5	EP2000/6
2500	EP2500/5	EP2500/6
3000	EP3000/5	EP3000/6

Cover rubber Grade

The standard rubber quality grade : ( It can be customized according to the customer’s requirements )

Cover Grade	Applicable Standards	Tensile Strength (MPA)	Abrasion Loss (mm3)	Elongation at break (%)	Application charecteristics	Reference Materials
DIN X	DIN 22102	25	120	450	Suitable to convey moderately sharp abrasive material with cut gouge property under heavy duty applications	Iron ore,Coal,Lignite,Copper,Limestone,Blast Furnace Slag, Stone,Rock etc
DIN M	DIN 22102	24	125	450	Suitable to convey moderately sharp abrasive material with cut gouge property under heavy duty applications	Iron ore,Coal,Lignite,Copper, Limestone,Blast Furnace Slag, Stone,Rock etc
DIN Y	DIN 22102	20	150	450	Suitable to convey moderately sharp abrasive material under medium duty applications	Coal,Lignite,Limestone, Gypsum,Potash etc.
DIN W	DIN 22102	18	90	400	Highly Abrasive materials with Cut Gouge property	Sharp big lumps of iron Ore, Rock Phosphate etc
DIN N	DIN 22102	17	150	400	Suitable to convey moderately sharp abrasive material under medium duty applications	Coal,Lignite,Limestone, Gypsum,Potash etc.
DIN Z	DIN 22102	15	250	350	Suitable to convey less Abrasive and Smaller Lump Fine material	Sand,Cement,Slacked Lime, Wood Chips,Pulp (Dry)
DIN K	DIN 22102	20	150	400	1.Average value of duration of flame of 6 test pieces with covers does not exceed 45S. 2.Single samples not exceed 15S. 3.Anti-Static property ≤ 3*108Ω
MOR	DIN 22102	14	200	350%	Moderatly oil resistant. Suitable for material consisting of animal fat or vegetable oil, Swelling in IRM903 oil (22h,100℃) Max,+50%	animal fat or vegetable oil
OR	DIN 22102	16	160	350%	IRM903 oil (22h,100℃) Max,+5%	Gasoline engine oil is refined petroleum.
T1	DIN 22102	15	200	350%	Working arrange: +100°C short time 125°C	Raw material: SBR
T2	DIN 22102	15	200	350%	Working arrange: +125°C short time 150°C	Raw material: SBR
T3	DIN 22102	15	200	400%	Working arrange: +150°C short time 180°C	Raw material: EPDM
T4	DIN 22102	15	200	400%	Working arrange: +180°C short time 250°C	Raw material: EPDM
RMA1	RMA	17	150	400	Suitable to convey moderately sharp &abrasive material under medium duty applications	Coal,Lignite,Limestone, Gypsum,Potash etc.
RMA 2	RMA	14	250	350	Suitable to convey less Abrasive and Smaller Lump&Fine material	Sand,Cement,Slacked Lime, Wood Chips,Pulp (Dry)
AS N	AS 1332	17	200	400	Suitable to convey less Abrasive and Smaller Lump Fine material	Coal,Lignite,Limestone, Gypsum,Potash etc.
AS M	AS 1332	24	125	450	Suitable to convey moderately sharp abrasive material with cut gouge property under heavy duty applications	Iron ore,Coal,Lignite,Copper, Limestone,Blast Furnace Slag, Stone,Rock etc
H	ISO14890: 2013	24	120	450	Suitable to convey moderately sharp abrasive material with cut gouge property under heavy duty applications	Iron ore,Coal,Lignite,Copper, Limestone,Blast Furnace Slag, Stone,Rock etc
D	ISO14890: 2013	18	100	400	Suitable to convey moderately sharp abrasiven material with cut gouge property under heavy duty applications	Iron ore,Coal,Lignite,Copper, Limestone,Blast Furnace Slag, Stone,Rock etc
L	ISO14890: 2013	15	200	350	Suitable to convey less Abrasive and Smaller Lump Fine material	Sand,Cement,Slacked Lime, Wood Chips,Pulp (Dry)
